The database Host on the General section is resolved from the SSH server, not from your Mac. A database on the SSH server itself is therefore localhost, not the server’s public name, and a database elsewhere on the private network is whatever the SSH server calls it (an RDS endpoint, for instance).

Set up a tunnel

1

Turn the tunnel on

In the connection form, open the Network tab and set Connect via to SSH Tunnel. A connection uses one transport, so choosing this one switches off whichever was selected before.
2

Name the SSH server

Fill in SSH Host, SSH Port (22 by default), and SSH User. With ~/.ssh/config entries present, a Config Host picker appears above the host field instead.
3

Pick an authentication method

Password, Private Key, SSH Agent, Keyboard Interactive, or None. Authentication methods has the fields for each.
4

Set the database Host from the server's point of view

Back on General, localhost reaches a database on the SSH server itself. One on a unix socket needs Socket Path instead.
5

Click Test Connection

A wrong host, a blocked forward, or an agent nothing answered on names the real reason instead of timing out. Troubleshooting has the messages the SSH side reports.
To share one SSH config across connections, save it with Save Current as Profile… or pick an existing one from the Profile picker; see SSH Profiles. To fill the fields from a string instead, paste a scheme+ssh:// URL into the Import from URL… sheet.

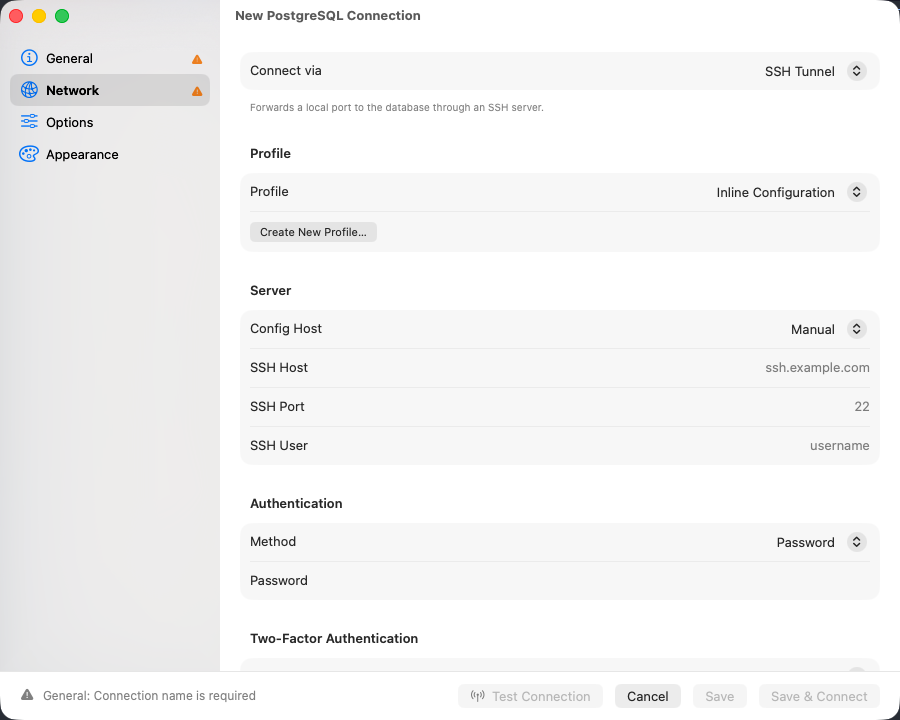

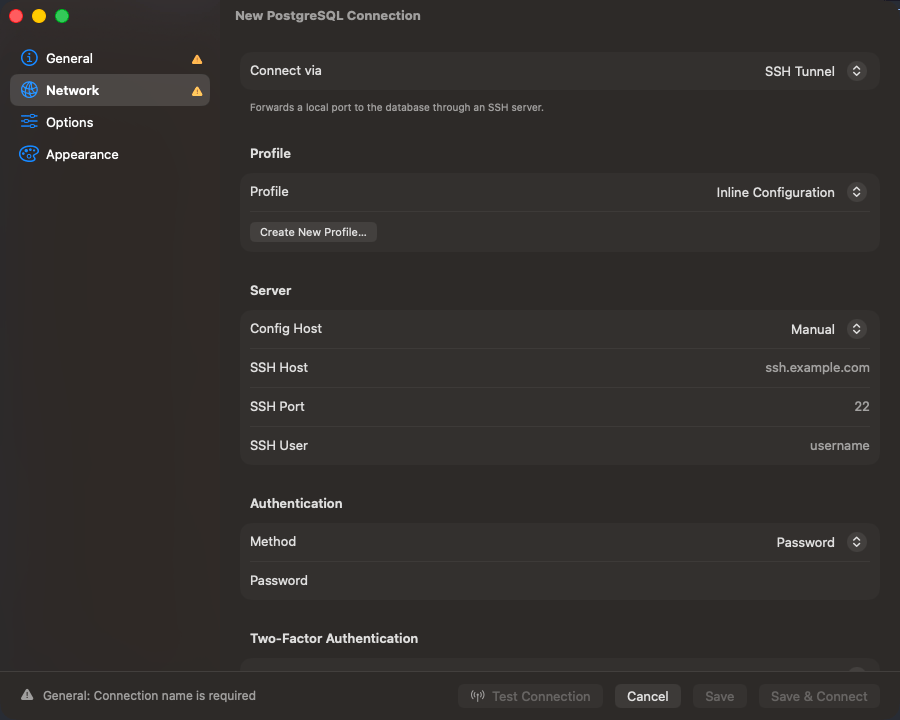

Network section with SSH Tunnel selected and a saved profile in the Profile pickerNetwork section with SSH Tunnel selected and a saved profile in the Profile picker

Reusing a saved SSH profile

Which databases offer SSH Tunnel is in the transport table. DuckDB offers it once Connection Type is Remote (Quack, experimental), and forwards to the Host and Port that mode shows on General. For SAP HANA, forward the port yourself, as its Limitations show.

Authentication methods

Private Key is the one to pick unless the server only ever issued you a password.

Verification codes and two-factor authentication

A keyboard-interactive challenge partway through authentication, from google-authenticator or duo_unix for example, is shown as the server worded it and your answer sent back. Every method except None supports this, a key or agent followed by a second factor included (AuthenticationMethods publickey,keyboard-interactive). The Two-Factor Authentication section can answer TOTP codes instead. None and Prompt at Connect both ask when the server does; Auto Generate computes the code from the base32 TOTP Secret off your authenticator enrollment, with Algorithm (SHA1, SHA256, SHA512), Digits (6 or 8), and Period (30s or 60s) already set to what most servers use.

Host keys

A first connection shows the server’s key type and SHA-256 fingerprint, in ssh-keygen -l format, and waits for Trust. Trusted keys go to ~/Library/Application Support/TablePro/known_hosts. If a trusted server’s key later changes, an SSH Host Key Changed alert lists the previous and current fingerprints. Connect Anyway does not answer the Return key. Escape picks Disconnect, which is what to take unless you know the server was reinstalled. With jump hosts, every hop’s key is verified the same way. The tunnel offers the post-quantum key exchange mlkem768x25519-sha256 first, so a server that allows only post-quantum key exchange connects too. A server that allows only sntrup761x25519-sha512 does not.

Using ~/.ssh/config

Pick an alias from the Config Host picker and HostName, User, Port, IdentityFile, IdentitiesOnly, IdentityAgent, and ProxyJump are resolved from the config at connect time. Anything typed into the form overrides the file, which is re-read whenever it or an Included file changes. Match blocks take the criteria ssh does, localnetwork and tagged included. A tunnel counts as sessiontype none with an empty command, and a criterion TablePro does not know keeps its block from applying. Match exec runs your command through /bin/sh in the app’s inherited environment. Exit status zero matches. The command gets five seconds, then two seconds to stop before it is killed. Edit ~/.ssh/config to control these commands. Host and user values are checked before substitution, including names resolved through DNS. CanonicalizeHostname completes a short name with each CanonicalDomains suffix in turn, skipping a name with more dots than CanonicalizeMaxDots, and applies to a host reached through a jump only when set to always. The completed name is the one dialed and the one its host key is stored under. A DNS alias (CNAME) replaces it only where a CanonicalizePermittedCNAMEs rule covers both names. With CanonicalizeFallbackLocal no, a name no suffix resolves stops the connection instead of being dialed as typed. IdentityFile picks which agent key is offered, not only which key file is read, and a .pub is enough. That is how a 1Password or Secretive key gets pinned to a host. IdentitiesOnly yes then drops every agent key the config did not name, which is what keeps a thirty-key agent inside a server’s MaxAuthTries. Once a connection opens, the hosts, ports and usernames it reached through the config sync to iPhone and iPad, so it opens there too. The config file, keys and key paths stay on the Mac.
Config Host pickerConfig Host picker

Picking a host from ~/.ssh/config

Tokens

Each keyword takes the tokens ssh_config(5) gives it, and no others. Hostname %h is the common one: it names the host the connection already asked for, which is what makes a catch-all Host *.* block work. %h is the host after any HostName substitution and %n the one the connection named; %p, %r and %j are the port, remote user and jump host in effect; %d and %u are your home directory and username; %C hashes %l%h%p%r%j, the way ControlPath does. ${VAR} reads an environment variable in the same places, and a leading ~ or ~user expands in any keyword naming a file. A token a keyword does not take stops the connection and names both, rather than reaching the server as literal text. Include is the one narrowing: the file is read once for every connection, before any host is known, so a token naming the target is skipped with a note in Console.

Jump hosts

For a database behind more than one bastion, expand Jump Hosts and add each hop in order. Each hop is an SSH session tunneled through the previous one, with no ssh subprocess involved. With the list left empty and an SSH host that matches a config entry carrying ProxyJump, that directive is followed instead. A hop’s own ProxyJump is followed too, but in a list only the first hop’s, as ssh -J a,b does. ProxyJump none turns it off, a hop written as ssh://user@host:port reads the same as user@host:port, and a hop with no User is named in the error before anything is dialed. A connection with hops syncs to iPhone and iPad with every hop, its port and its key path intact. A key path names a file on the Mac, so give each hop a key on the device before the connection opens there. The tunnel’s own port and auth method make the same round trip: a port you left empty stays empty, so ~/.ssh/config still decides it.

Forwarding to a unix socket

Some servers listen on a unix socket with no TCP port open at all, a PostgreSQL box set up for local connections in pg_hba.conf being the usual case. Fill in Socket Path under SSH Tunnel and the forward targets that socket, the same thing ssh -L 5434:/var/run/postgresql/.s.PGSQL.5432 server does by hand. Host and Port are ignored while a socket path is set. Jump hosts still apply: the hops reach the SSH server, and the socket opens from there. Point at the socket file, not the directory holding it: peer authentication works: the SSH server opens the socket as your SSH login user, so a local all all peer line authenticates you as the PostgreSQL role of that name. A database on a socket cannot negotiate TLS, so SSL is switched off for the connection. The SSH tunnel still encrypts the whole path.

If the tunnel drops

A keep-alive goes out every 30 seconds. When one fails, the rows stay on screen while the tunnel is rebuilt and the connection reconnects, up to 10 tries. A query in flight dies with the tunnel and is not replayed. If every try fails, the pane reads Disconnected from <name>, gives the cause as SSH tunnel disconnected., and offers Reconnect. If tunnels keep dropping on an idle network, the keep-alive is not the missing piece: check the server’s ClientAliveInterval and the idle timeouts on any firewall or load balancer in between.

What the tunnel is carrying

Press Ctrl+Cmd+C and read the footer under the connection list: bytes received and sent since the tunnel opened, and the rate beside each direction while traffic is moving. A rebuilt tunnel starts again from zero. See transport activity.

Troubleshooting

”The SSH server could not reach …”

SSH is fine and the forward is not. Almost always the Host field: that address is resolved from the SSH server, so a database bound to 127.0.0.1 (the MySQL and PostgreSQL default) needs Host set to localhost. Check what it is bound to with ss -lntp on the server. If the host is right, check sshd_config for AllowTcpForwarding yes.

”The SSH server did not open a forwarding channel to …”

The destination took the connection and never answered, which usually means a firewall or security group dropping packets rather than refusing them. Test it from the SSH server: ssh user@server "nc -zv db-host 3306".

”The SSH server would not forward the socket …”

The socket path does not exist on the server, or sshd_config sets AllowStreamLocalForwarding no. That is a separate setting from AllowTcpForwarding.

”No SSH agent answered on the socket from …”

Nothing is listening where that socket points, and the message names which of the three set it: Agent Socket under SSH Tunnel, an IdentityAgent line for the host in ~/.ssh/config, or SSH_AUTH_SOCK. Change it in the place the message names. SSH_AUTH_SOCK is the one that catches people out. An app launched from Finder gets it from launchd, which means the ssh-agent macOS runs, whatever a shell profile exports. 1Password and Secretive are reached by naming their own socket: switch Agent Socket to 1Password, or to Custom Path. A jump host has no Agent Socket field of its own, so its agent comes from IdentityAgent or SSH_AUTH_SOCK. IdentityAgent SSH_AUTH_SOCK means that variable, as it does for ssh. IdentityAgent none turns the agent off: a jump host from ~/.ssh/config then signs in with its IdentityFile keys, and a tunnel set to SSH Agent stops with an error naming that line.

”The SSH agent from … holds no keys.”

The agent answered and offered nothing. 1Password serves keys only while it is running and unlocked, and Secretive only while its agent is loaded; unlock it and add the key there. ssh-add loads keys into the SSH_AUTH_SOCK agent alone, so it is the fix only when that is the socket in the message.

”The SSH agent from … holds no key matching the identity file set for this host. …”

The agent has keys, and none of them is the one IdentityFile or Identity File names. List what that agent holds with SSH_AUTH_SOCK=<the socket the message names> ssh-add -L, since a bare ssh-add reads the shell’s SSH_AUTH_SOCK rather than the socket TablePro used. Point the setting at a key in that list, or clear it to go back to offering every key.

”No public key could be read from the identity file set for this host, …”

IdentityFile or Identity File names a path, and neither it, its .pub sidecar, nor its -cert.pub parses as an OpenSSH public key. Check the path, and run ssh-keygen -l -f <path> to confirm the file itself. ssh-keygen -y -f <private key> > <private key>.pub writes the sidecar when only the private key exists.

”SSH agent did not authenticate. …”

The agent offered keys and the server accepted none of them. Check the public key is in ~/.ssh/authorized_keys on the server for the SSH User you filled in, and that the key you expect is in the agent rather than only on disk.

”The SSH server closed the connection while the agent’s keys were being offered. …”

The server reached MaxAuthTries, 6 by default, before a key it accepts came up. Count that agent’s keys with SSH_AUTH_SOCK=<the socket in **Agent Socket**> ssh-add -L: past six, the right one may never be offered. Name it with IdentityFile and IdentitiesOnly yes for the host in ~/.ssh/config, or fill in Identity File on the connection.

”TablePro and the SSH server have no … in common.”

The server allows only key exchange methods, host key types, ciphers or MAC algorithms TablePro lacks. The message names the step that found nothing in common, the software in the server’s banner, and every method TablePro has for that step. Run sudo sshd -T on the server to see what it allows, and ask its administrator to add one of TablePro’s methods to KexAlgorithms, HostKeyAlgorithms, Ciphers or MACs in sshd_config. When the message goes on with “The server offers only … TablePro no longer supports”, the server allows nothing but methods built on SHA-1, MD5, RIPEMD-160 or an old cipher. TablePro does not offer these: An RSA host key keeps working once the server signs with rsa-sha2-512 or rsa-sha2-256, which takes OpenSSH 7.2 or later. DSA (ssh-dss) host keys are not supported.

”TablePro and the SSH server have no signature algorithm in common for this key.”

The key is RSA, and the server accepts RSA keys only with ssh-rsa signatures, which use SHA-1. TablePro signs RSA keys with rsa-sha2-256 or rsa-sha2-512. Add those to PubkeyAcceptedAlgorithms in sshd_config (PubkeyAcceptedKeyTypes before OpenSSH 8.5), or sign in with an Ed25519 or ECDSA key. A server older than OpenSSH 7.2 cannot check either signature, so it needs a key of another type.

”The SSH host … contains characters ssh does not allow in a host name.” / “The SSH user … contains characters ssh does not allow in a user name.”

The name in the message holds a character ssh refuses, such as a quote, a backtick, one of ;&|<>(){}, or a leading -. A host also refuses whitespace, $, , and a backslash. Find the name in SSH Host, SSH User, a jump host, or a HostName line in ~/.ssh/config, and correct it.

”… was not found in any of the CanonicalDomains in ~/.ssh/config, and CanonicalizeFallbackLocal is set to no.”

None of the CanonicalDomains suffixes turned the host into a name DNS resolves, and the config forbids dialing the short name. Check that the full name resolves for the domain you expect: dscacheutil -q host -a name db.example.com. Add the missing domain to CanonicalDomains, or set CanonicalizeFallbackLocal yes for that host.

”Jump host … failed: …”

The step after the colon failed on that jump host, not on the SSH server. Check that hop’s Host, Port, Username and Key File under Jump Hosts, or its Host block in ~/.ssh/config. “Could not open a channel” there means the jump host’s sshd_config sets AllowTcpForwarding no, or it cannot reach the next host.

The tunnel connects and the database refuses the login

The database credentials are separate from the SSH ones. Check you did not carry one set into the other.

A firewall prompt on connect

The local end of the tunnel listens on a port between 60000 and 65000. Allow it.

SSH fails instantly against a server on your own network

macOS 15 and later put outbound connections to local network addresses behind a Local Network permission. With it off, the window reads Local Network Access Required and names the SSH server, or the first jump host, it could not reach. Open System Settings takes you to Privacy & Security, where Local Network lists TablePro. Servers over the internet, and anything on 127.0.0.1, are unaffected.

SSH itself fails

Try the same host, user, and key in Terminal with ssh -v user@server. If that fails too, the problem is server-side.
