MongoDB Connections

TablePro supports MongoDB 5.0 and later. Collections appear as tables in the sidebar. Documents display with fields as columns, and nested objects render as formatted JSON.

​
Quick Setup

1

Create Connection

Click New Connection, select MongoDB, enter host/port/username/password/database, and click Create
2

Test Connection

Click Test Connection to verify

​
Connection Settings

FieldDefaultNotes
Hostlocalhost
Port27017
Database-Database name to connect to
Username-Leave empty for local dev without auth
Password-
Auth DatabaseadminDatabase to authenticate against
Advanced (Optional): Configure Read Preference (primary, secondary, nearest) and Write Concern (majority for stronger durability) for replica sets.
MongoDB connection form

​
Example Configurations

Local: host localhost:27017, no auth, database myapp Docker: host localhost:27017 (or mapped port), password from MONGO_INITDB_ROOT_PASSWORD env, auth DB admin MongoDB Atlas: Enable SSL/TLS in connection form Remote: Use SSH tunneling for secure access

​
SSL/TLS

Configure in SSL/TLS section. MongoDB Atlas requires SSL/TLS - use Required or Verify CA. For unencrypted alternatives, use SSH tunneling.

​
Features

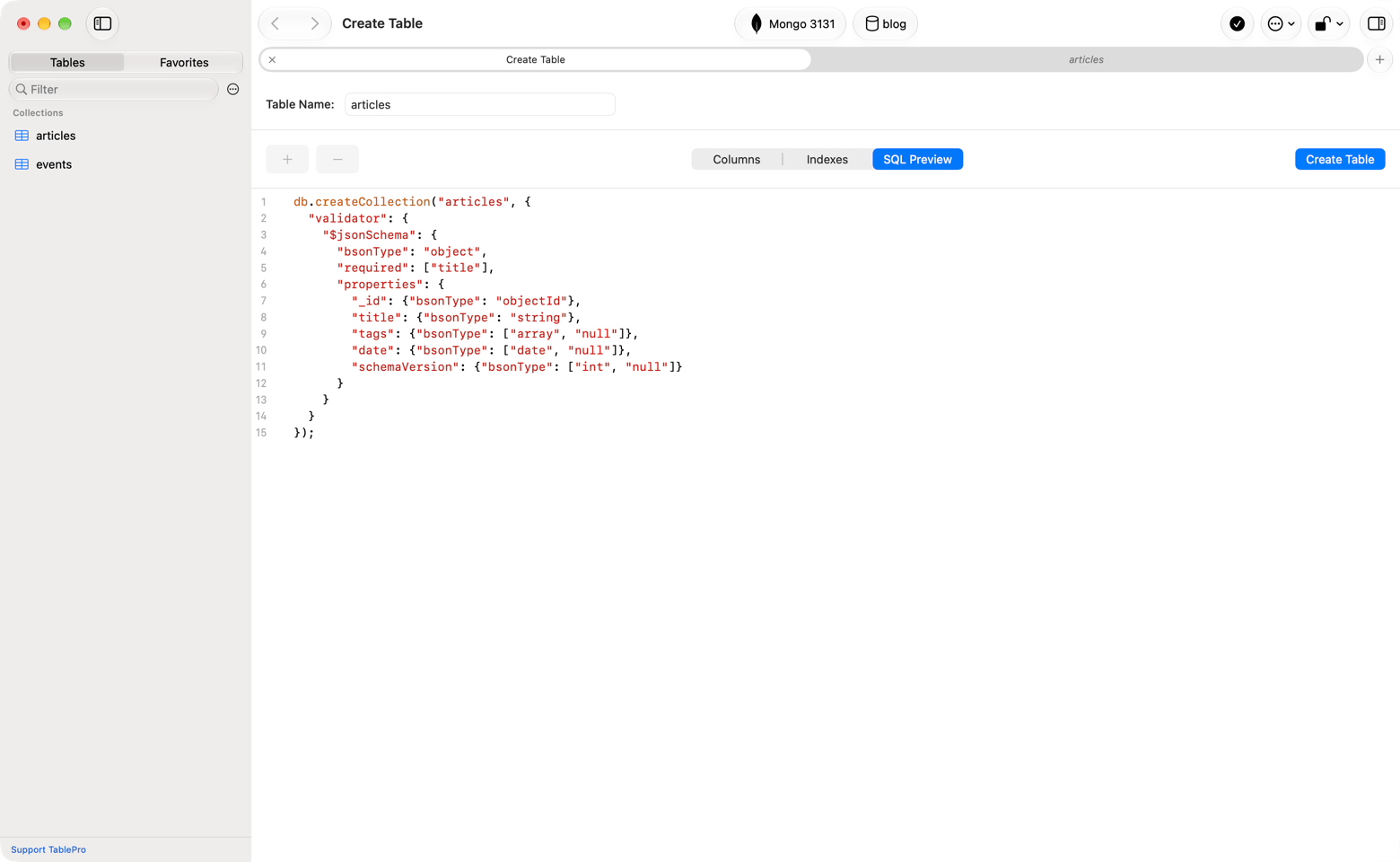

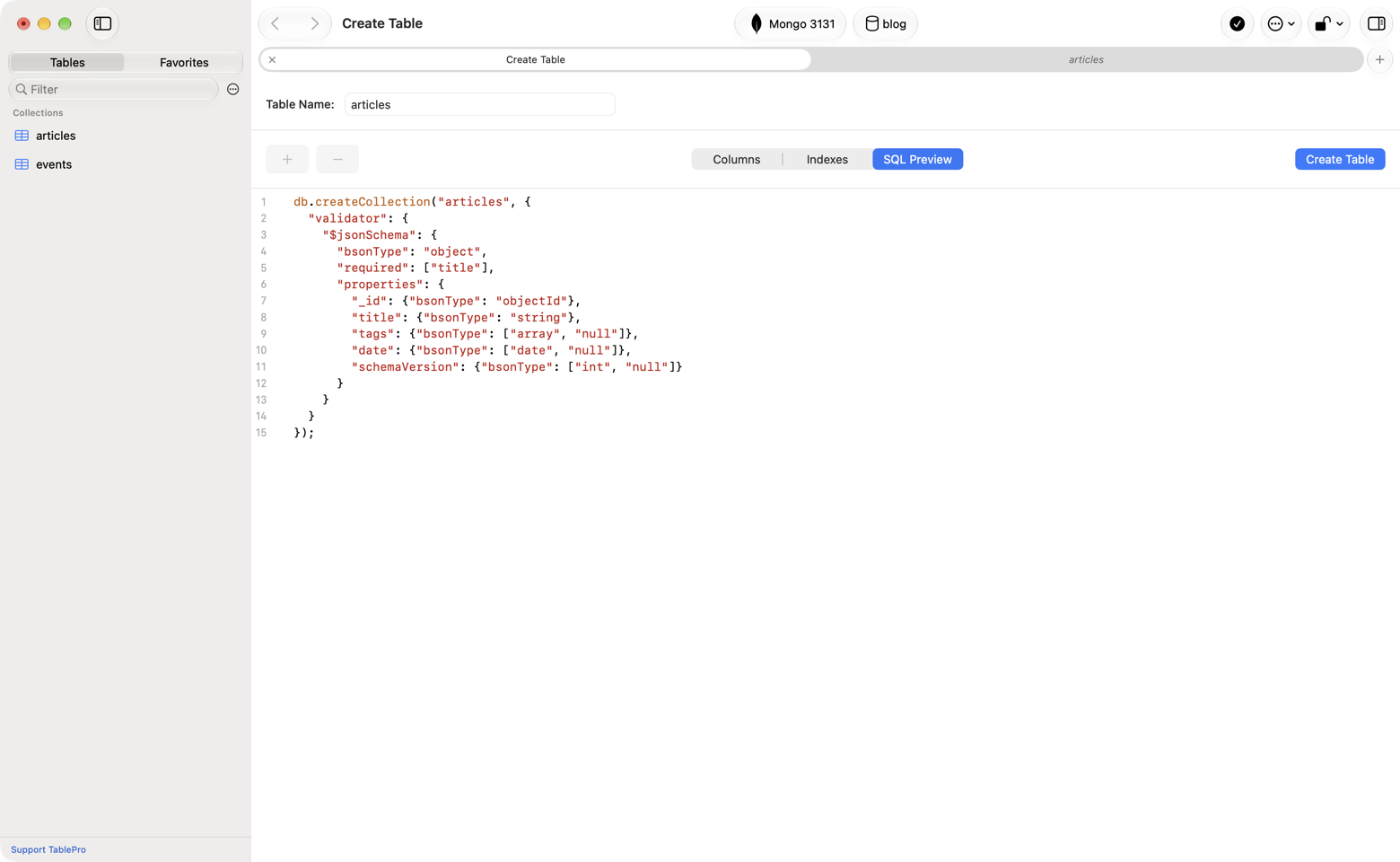

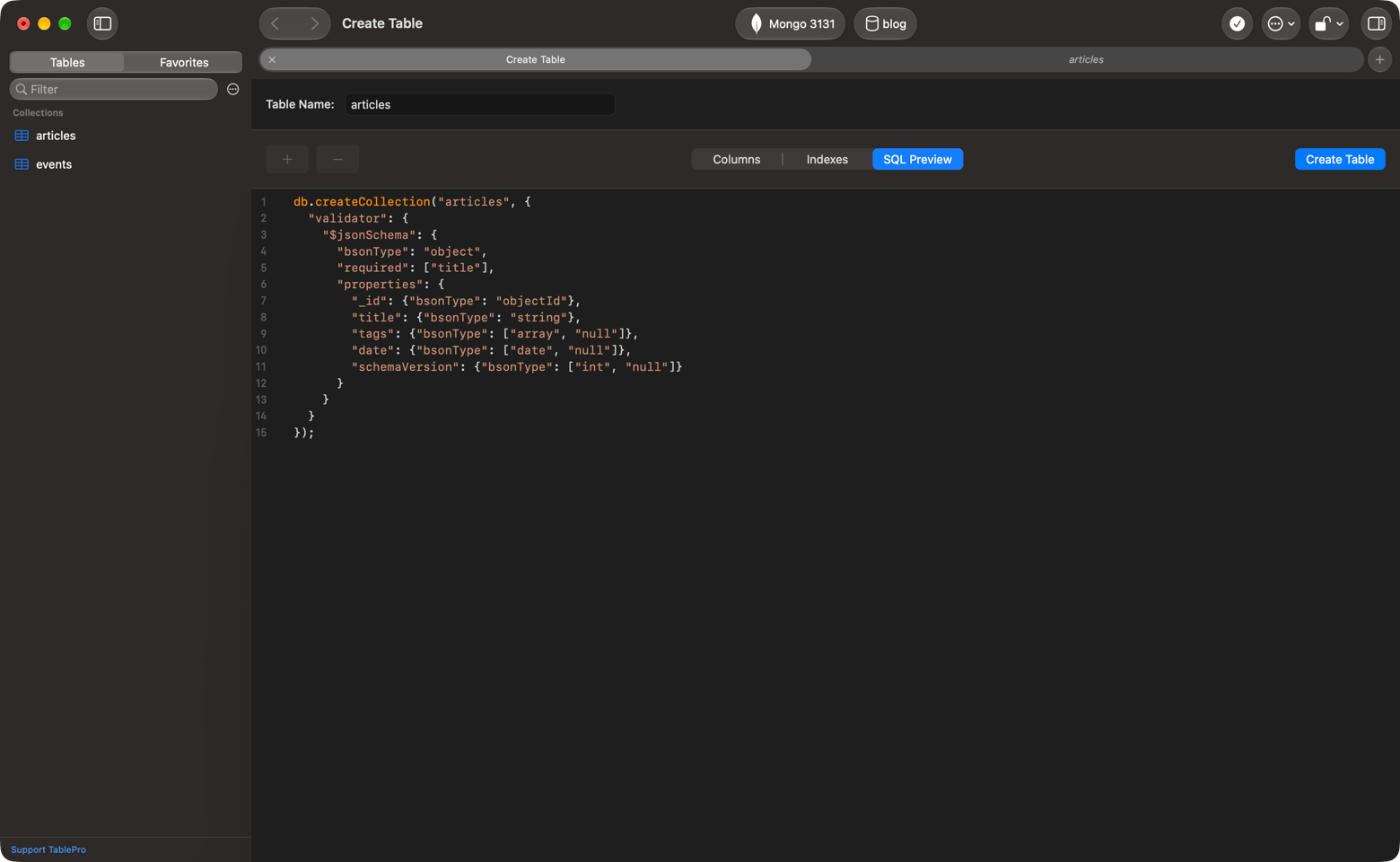

Collection Browsing: Sidebar shows all collections. Click to view documents in data grid. Document Viewing: Top-level fields as columns, nested objects as formatted JSON, arrays as JSON arrays, ObjectIds as strings, BSON types formatted appropriately. Schema inferred by sampling. Collection Duplication: Open Create Table, click Duplicate, select source collection. Uses aggregate with $out, recreates indexes. Result named originalName_copy. MongoDB Shell Queries (MQL syntax):
// Find documents with filtering
db.users.find({ age: { $gte: 18 }, active: true })

// Find with projection and sorting
db.orders.find(
  { status: "completed" },
  { customerId: 1, total: 1, date: 1 }
).sort({ date: -1 }).limit(20)

// Aggregation pipeline
db.sales.aggregate([
  { $match: { date: { $gte: ISODate("2025-01-01") } } },
  { $group: { _id: "$product", totalSales: { $sum: "$amount" } } },
  { $sort: { totalSales: -1 } },
  { $limit: 10 }
])

// Count documents
db.users.countDocuments({ role: "admin" })

// Distinct values
db.products.distinct("category")

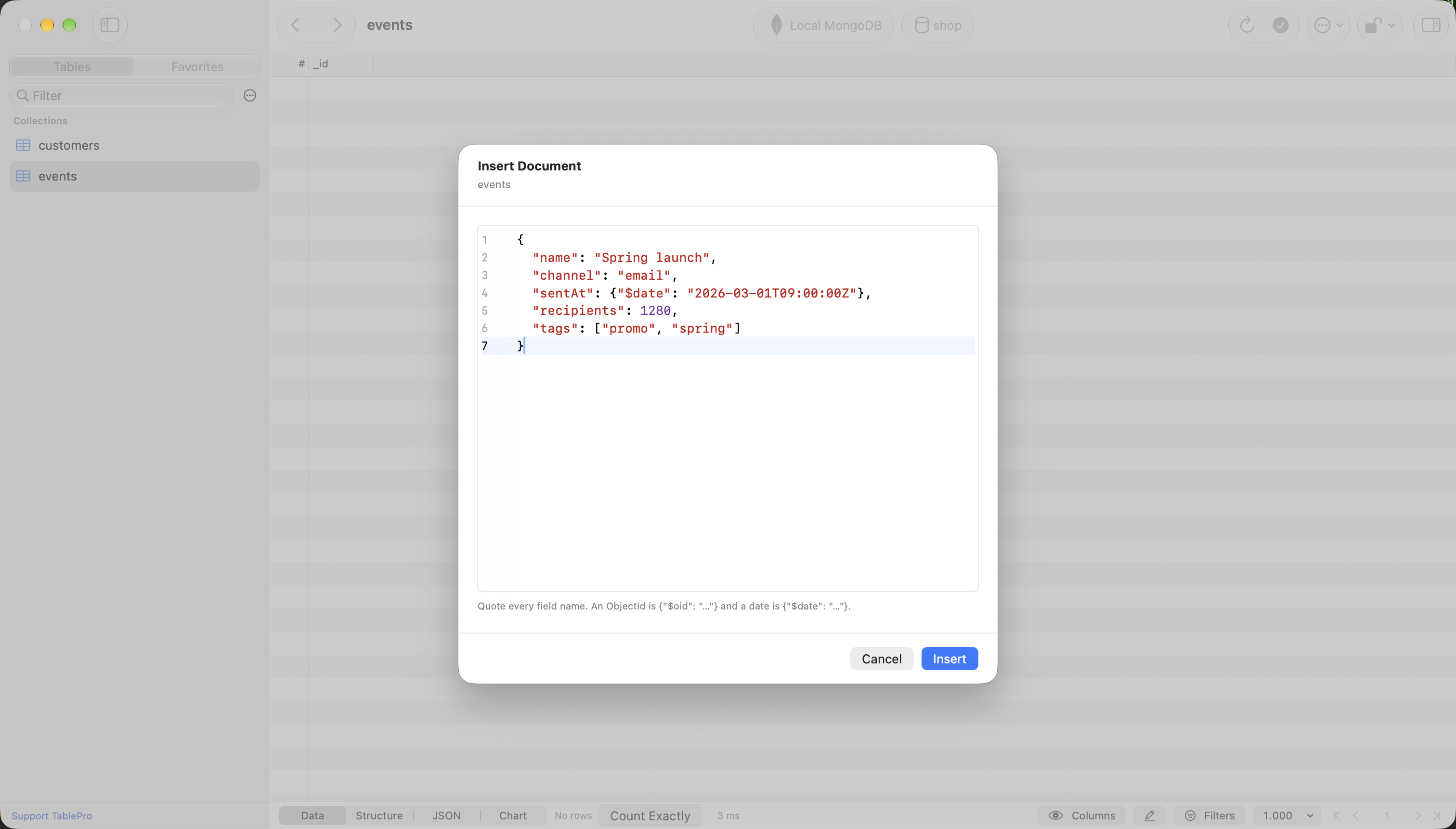

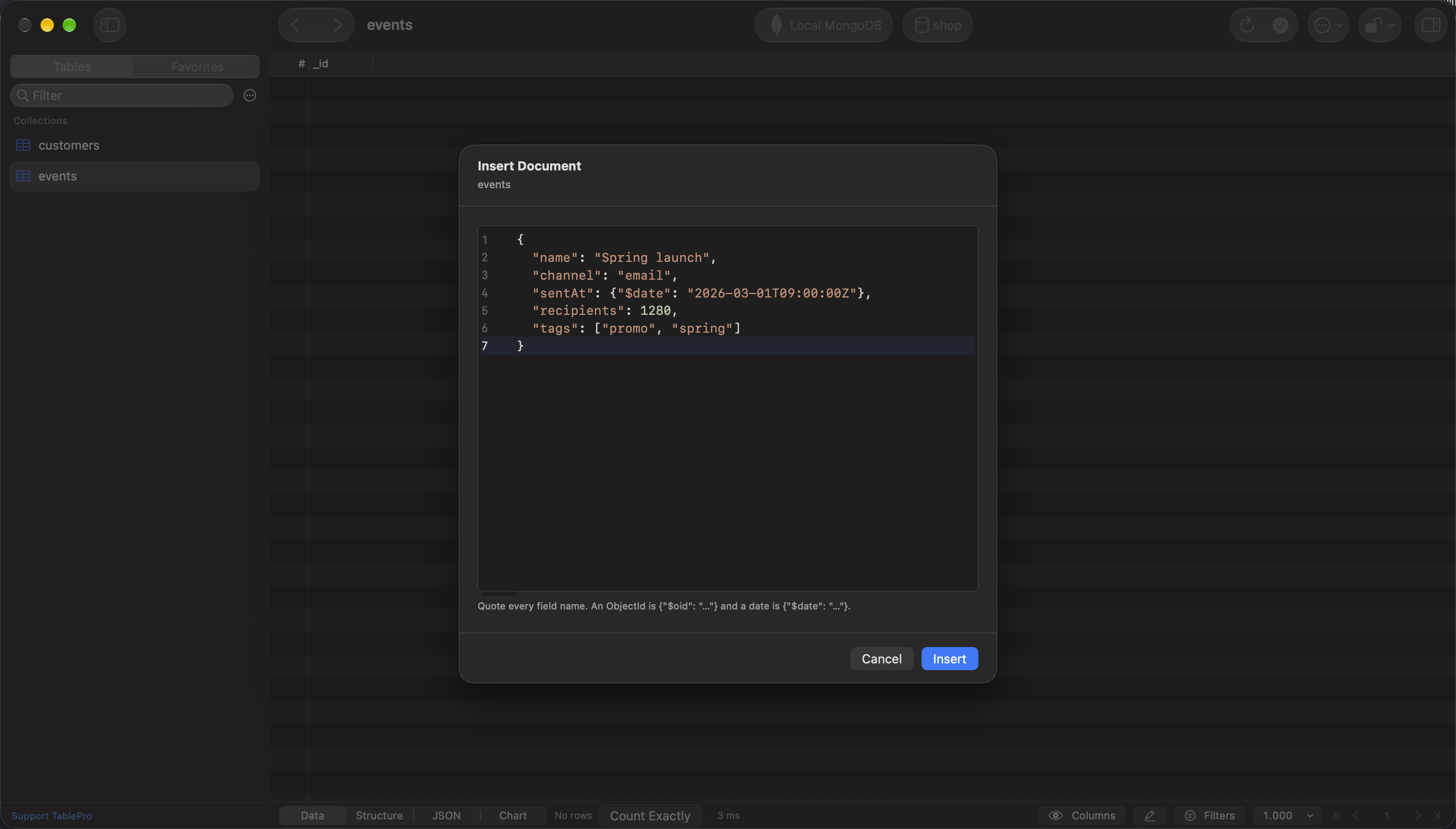

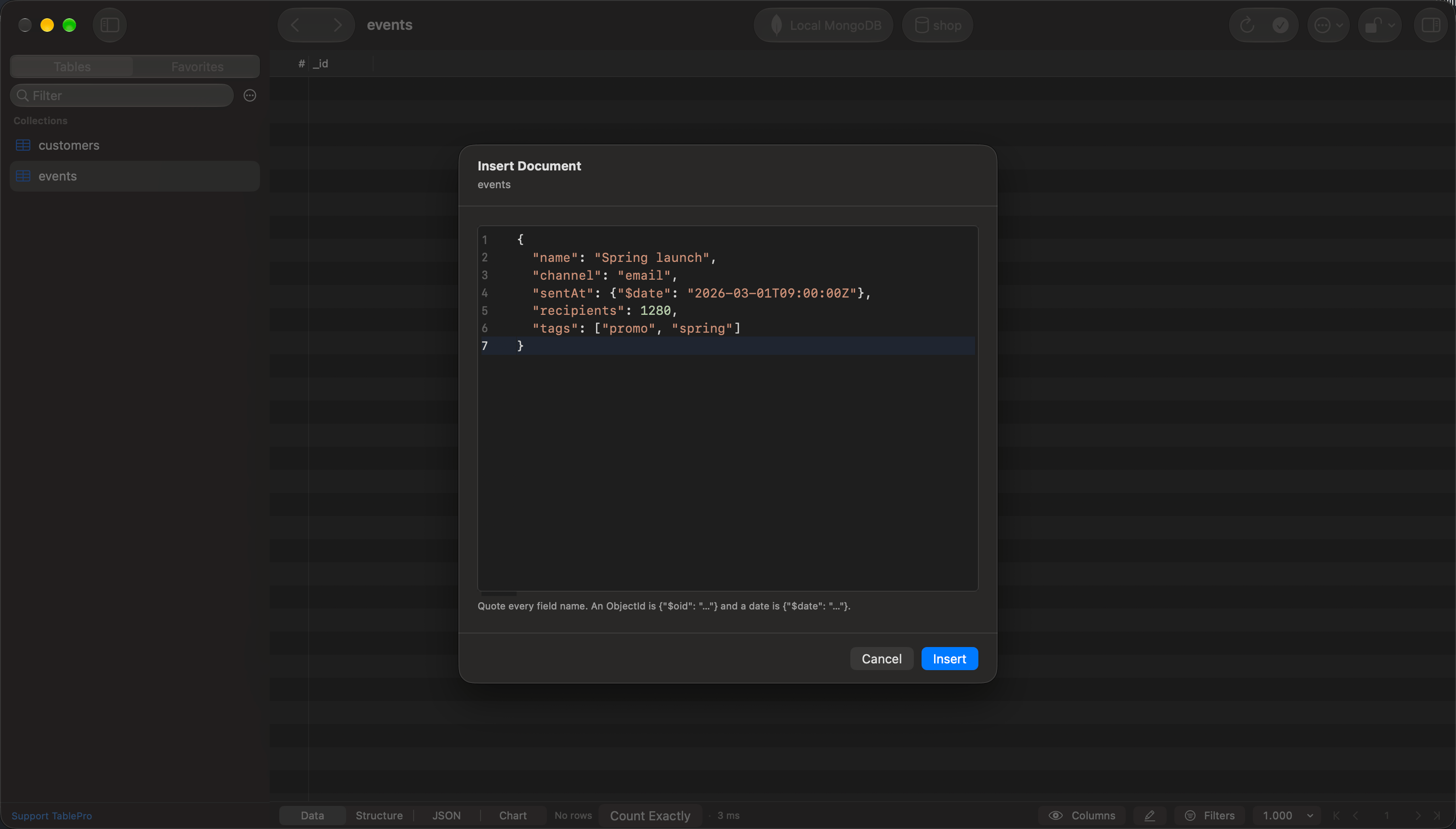

CRUD: Insert with insertOne()/insertMany(), update with updateOne()/updateMany(), delete with deleteOne()/deleteMany().

​
Troubleshooting

Connection refused: Check MongoDB is running (brew services start mongodb-community), verify host/port in mongod.conf, check bindIp setting. Auth failed: Verify username/password/auth database. Check user roles with db.getUsers(); Create user with db.createUser({user:"appuser", pwd:"password", roles:[{role:"readWrite", db:"myapp"}]}) Timeout: Verify host/port, check network and firewall, whitelist IP in MongoDB Atlas. Limitations: Transactions need replica set/sharded cluster, schema inferred by sampling, capped collections restricted, GridFS not browsable, change streams unsupported. Performance: Use filters, limit(), pagination, indexes. Analyze with explain("executionStats").
